Escomatic

Escomatic machining rotates tools around a stationary length of coil fed metal. This is variation of standard Swiss style turning which uses spindle-held rotating stock.

The "Esco Concept" minimizes vibrations, allowing for extremely high precision parts.

The continuously fed self-straightening coil stock reduces the turning needed to achieve the desired diameter. The Esco has excellent repeatability throughout production, even on runs of more than one million pieces

DS2, S/N 764 (1952)

Escomatic DS2"H" Type Toolhead, S/N N/A, Split Base, Pump & Coolant Tank Inside Base, Reconditioned $15,000

available with feed lever or feed slide

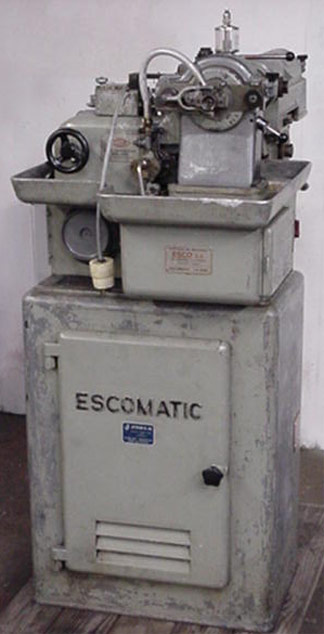

DS2, S/N 1290 (1960)

Escomatic "R" Type Toolhead"R" Type Toolhead S/N N/A, Split Base, Pump & Coolant Tank Inside Base, Reconditioned $17,000

available with feed lever or feed slide

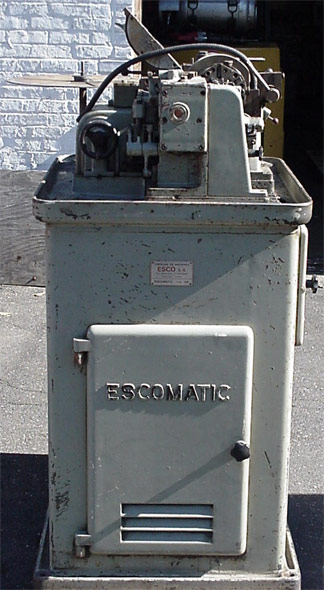

D4, S/N 59,
(1956)

Escomatic "H" Type"H" Type Toolhead, S/N H.717, Split Base, Pump & Coolant Tank Inside Base, Reconditioned $17,000

available with feed lever or feed slide

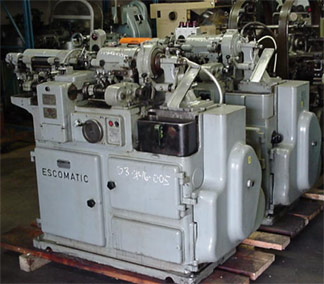

D6, S/N 140, (1963)

Escomatic w/Counter ColletWith Counter Collet, Feed System Rebuilt, Machine is ready to run. $19,000

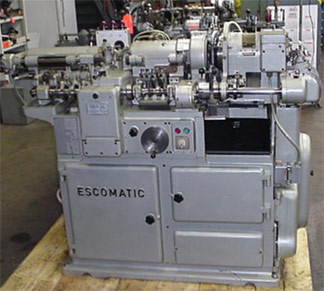

D6 SR S/N 2121, (1978)

Escomatic w/TurretWith Turret S-Type 1, 1/4 Second Indexing Time, 2 Spindle Back Drill, Excellent Condition
$46,000
